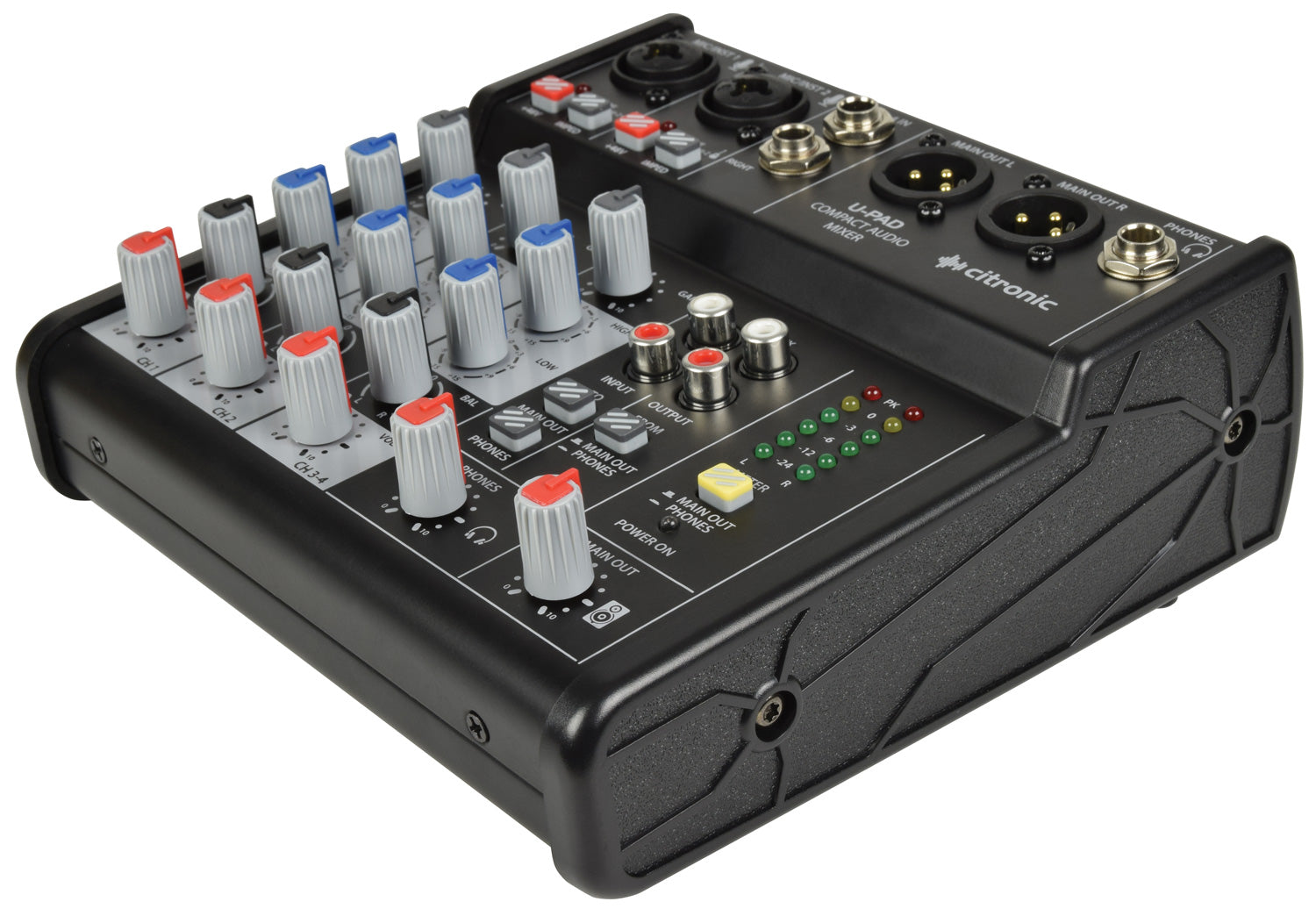

• Audio black mixer with grey control knobs with red, blue, black, dark grey tips - colour coded and divided in sections by functionality. Positioned on the high extremity : two hybrid sockets and two jack sockets in-put - followed by two XLR outputs and two RCA output and a jack headphones output.

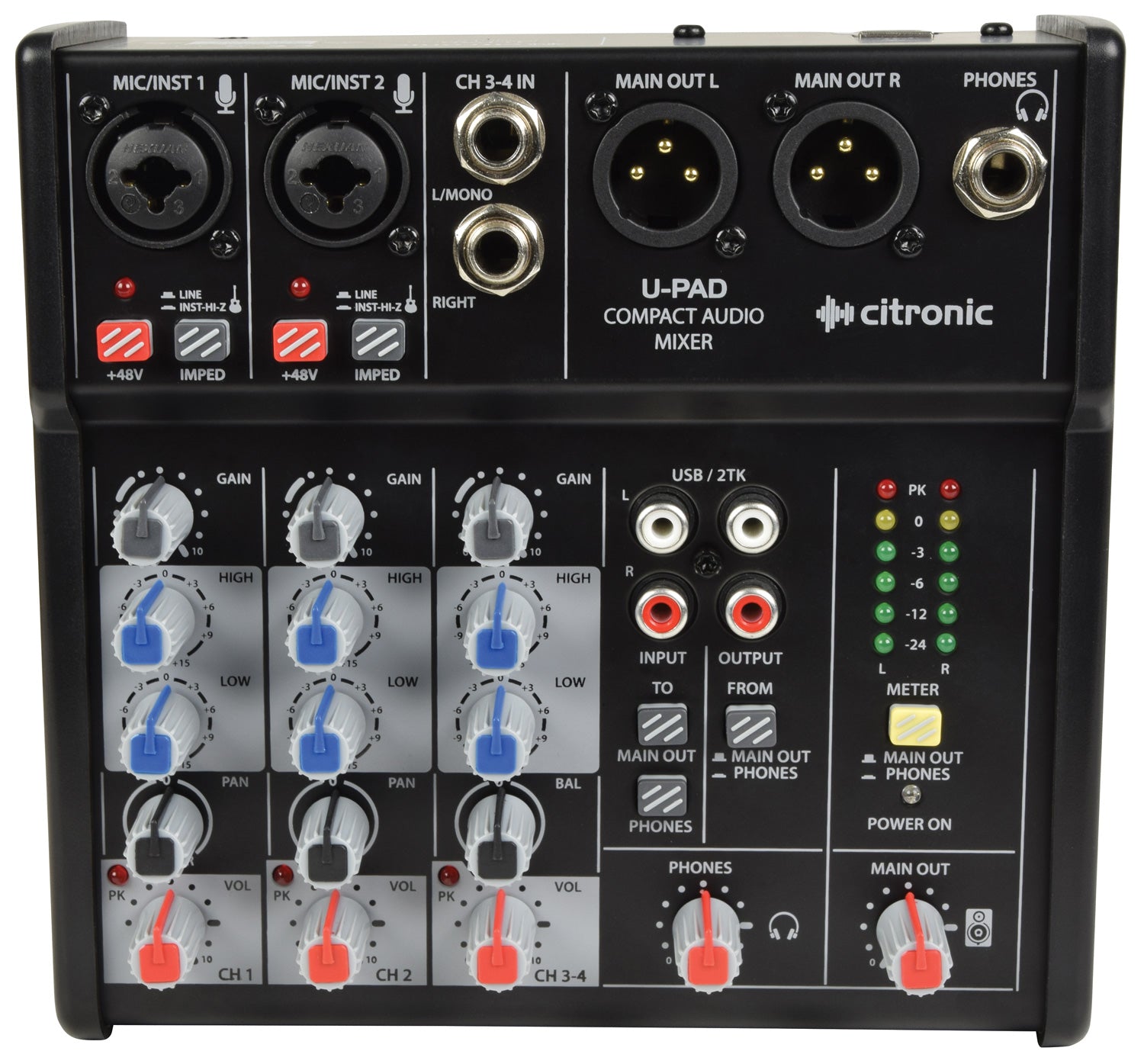

  • Citronic U-PAD compact audio mixer. Audio black mixer with grey control knobs with red, blue, black, dark grey tips - colour coded and divided in sections by functionality. Positioned on the high extremity : two hybrid sockets and two jack sockets in-put - followed by two XLR outputs and two RCA output and a jack headphones output.

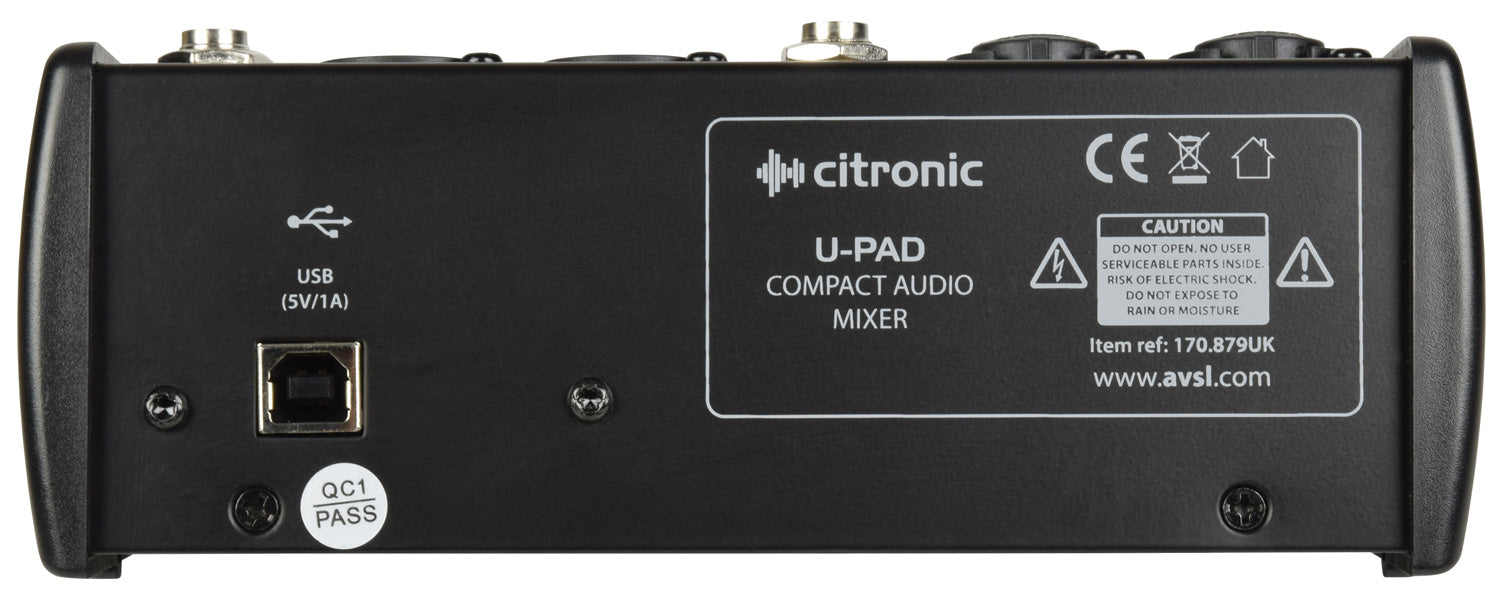

  • Back view of a Citronic U-PAD compact audio mixer with USB and audio input ports. Brand, model and caution label.

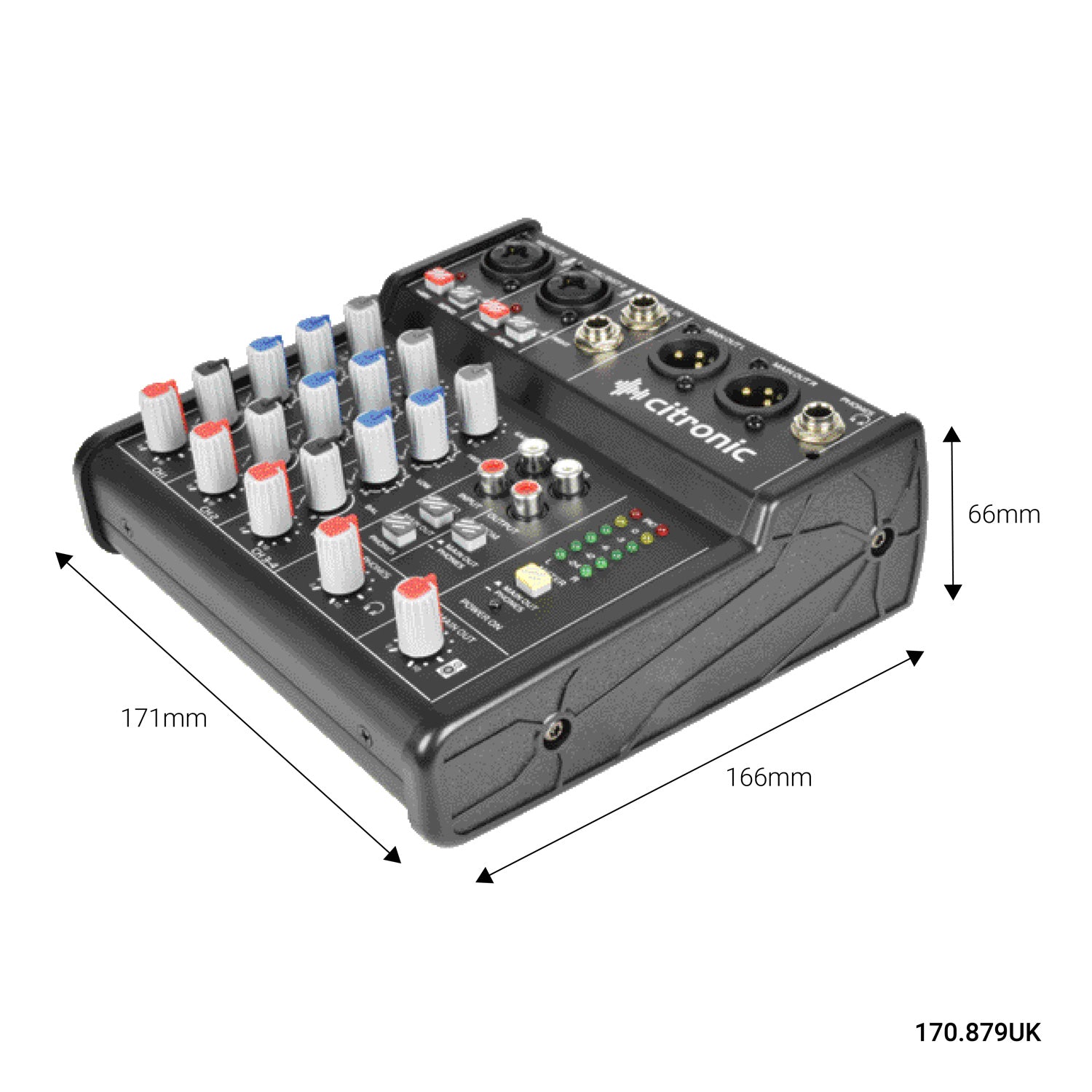

  • Audio mixer with Citronic branding and dimensions 171mm x 166mm x 66 mm

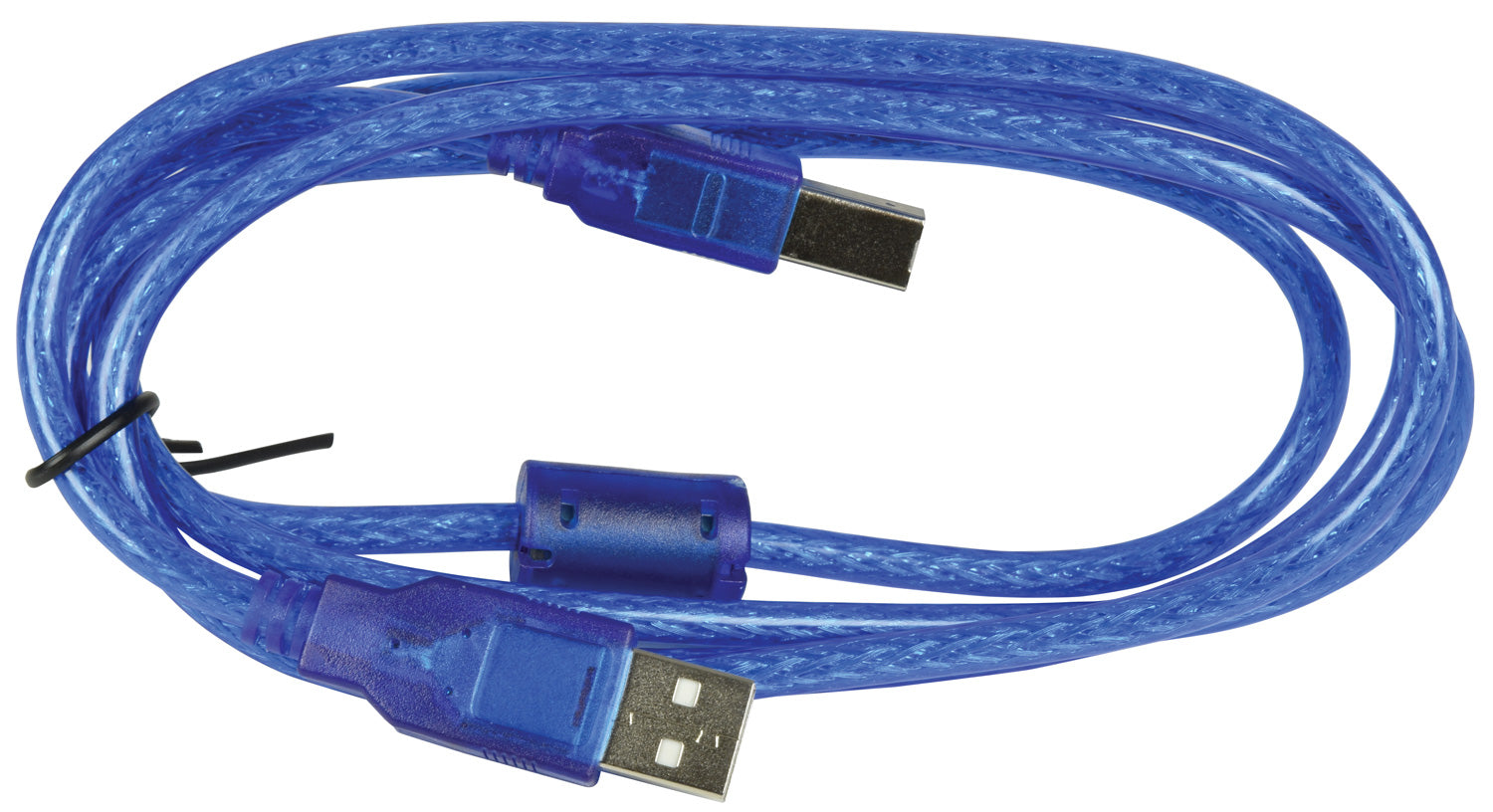

  • Blue USB cable with connectors on a white background
1 5

U-PAD | Mixer and Interface | Compact Mixer with USB Interface

U-PAD | Mixer and Interface | Compact Mixer with USB Interface

170.879

Professional mixing in your pocket — this compact USB mixer gives you studio-quality recording anywhere, with flexible inputs, full EQ control, and seamless USB integration. Laptop powered, location ready.

Description

U-PAD Compact Mixer with USB Interface

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector.

High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring.

Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording.

When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location.

    Features & Specs

    • High quality digital stereo input and output via USB
    • Studio quality balanced analogue inputs & outputs
    • Individually switchable +48V phantom power
    • Supplied with USB lead for power and PC/Mac connection
    • Power supply5.5Vdc (USB)
    • USB computer interfaceDuplex stereo in/out AD/DA
    • OutputLeft + Right balanced XLR (analogue)
    • Phantom power+48V individually switchable (XLR inputs only)
    • Gain-14 to +40dB
    • EQ: low±15dB @ 80Hz
    • EQ: high±15dB @ 12kHz
    • Input impedance : mic2k Ohms
    • Input impedance : instrument1M Ohms
    • Input impedance : line20k Ohms
    • Frequency response20Hz - 20kHz (±0.5B)
    • Sampling format24-bit, 96kHz max.
    • THD +N<0.03% @ 1kHz
    • Dynamic range102dB
    • Crosstalk : stereo92dB
    • Output impedance120 Ohms
    • Dimensions171 x 166 x 66mm
    • Weight900g
