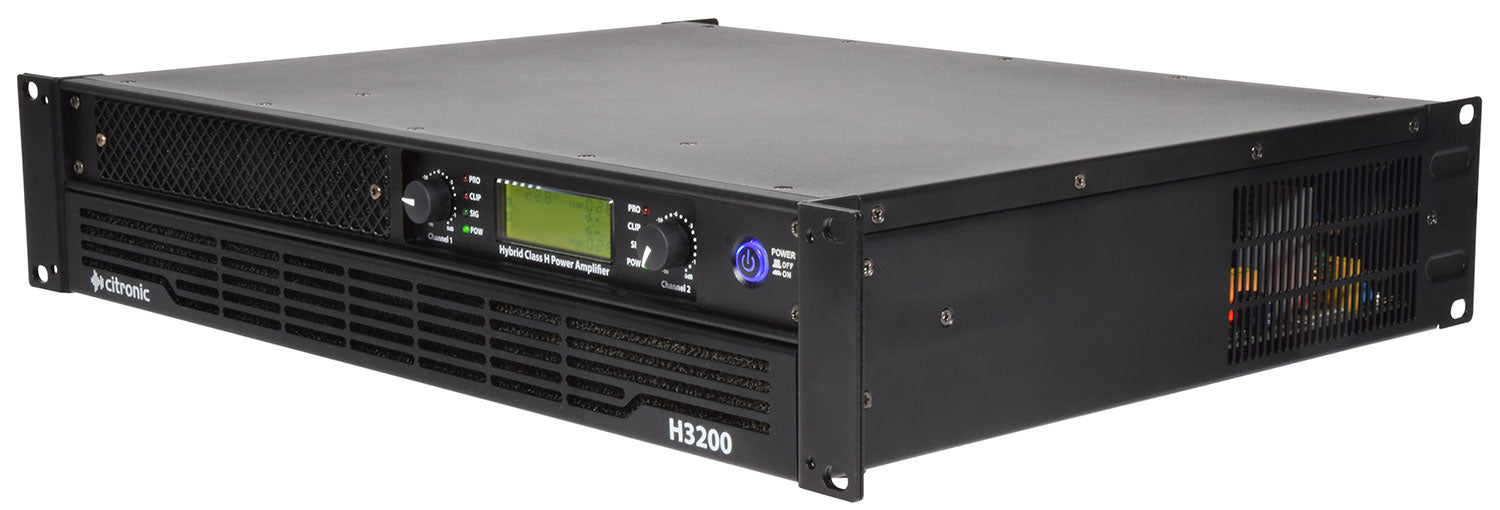

Citronic H3200 Hybrid Class-H Power Amplifier | 2×1200W | 19" Rack
Citronic H3200 Hybrid Class-H Power Amplifier | 2×1200W | 19" Rack
SKU:172.132UK
The Citronic H3200 delivers 2×1200W of hybrid Class-H power in a lightweight 2U rack chassis — engineered for sound contractors and PA installers who need dependable, high-output amplification for medium to large venues. Comprehensive protection, a switchable 120Hz crossover, and Stereo/Parallel/Bridge modes make it a genuinely versatile workhorse for professional sound reinforcement.
Description
Description
Professional Power. Lightweight Build. Uncompromising Performance.
The Citronic H3200 is a 2×1200W hybrid Class-H power amplifier designed for medium to large sound reinforcement systems. Its hybrid architecture combines the efficiency of a digitally controlled power section with the delivery and stability of a professional Class-H output stage — giving you the headroom and dynamic response that demanding live environments require, in a lightweight 19" rack-mountable 2U chassis.
A fully balanced signal path with three switchable input sensitivity levels (1.0V, 1.4V, 2.0V) ensures compatibility with a wide range of audio sources. The amplifier operates in Stereo, Parallel, or Bridge modes, and a switchable 120Hz low-pass filter makes it suitable for direct subwoofer use — eliminating the need for a separate crossover. Comprehensive internal protection covers thermal, overload, short/open circuit, DC fault, and RF conditions, with automatic muting at power on/off and active inrush limiting.

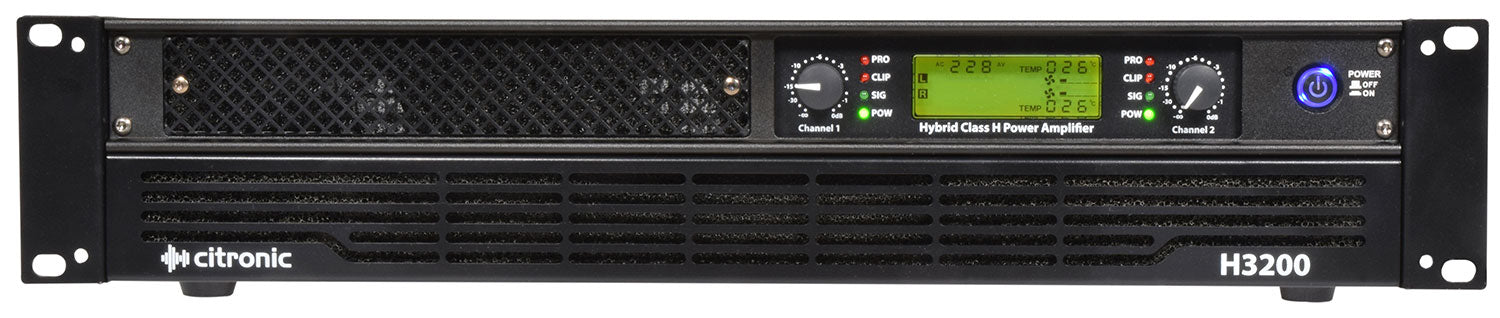

A backlit LCD display continually shows supply voltage, internal temperature, and output level. Speaker outputs accept 1 or 2 Speakon leads as required.
Features & Specs
Features & Specs
- Hybrid Class-H circuit design
- Power output: 2×800W @ 8Ω | 2×1200W @ 4Ω | 2×1600W @ 2Ω (40ms burst) | 3200W bridge @ 4Ω | 2400W bridge @ 8Ω
- Frequency response: 20Hz–20kHz ±0.5dB
- THD+N: 0.2%
- S/N ratio: -95dB
- Damping factor: >700
- Input sensitivity: 1.0V / 1.4V / 2.0V switchable
- Input impedance: 20kΩ (balanced) / 10kΩ (unbalanced)
- Switchable crossover: full range or fixed 120Hz low-pass
- Operating modes: Stereo, Parallel, Bridge
- Protection: short/open circuit, thermal, RF, DC fault, on/off mute, active inrush
- Backlit LCD status display
- Power supply: 200–240Vac, 50Hz (IEC)
- Fuse: T10AL 250V
- Dimensions: 483 × 361 × 88mm (2U rack)
- Weight: 8.9kg
- Brand: Citronic
- Model: H3200
- SKU: 172.132UK
