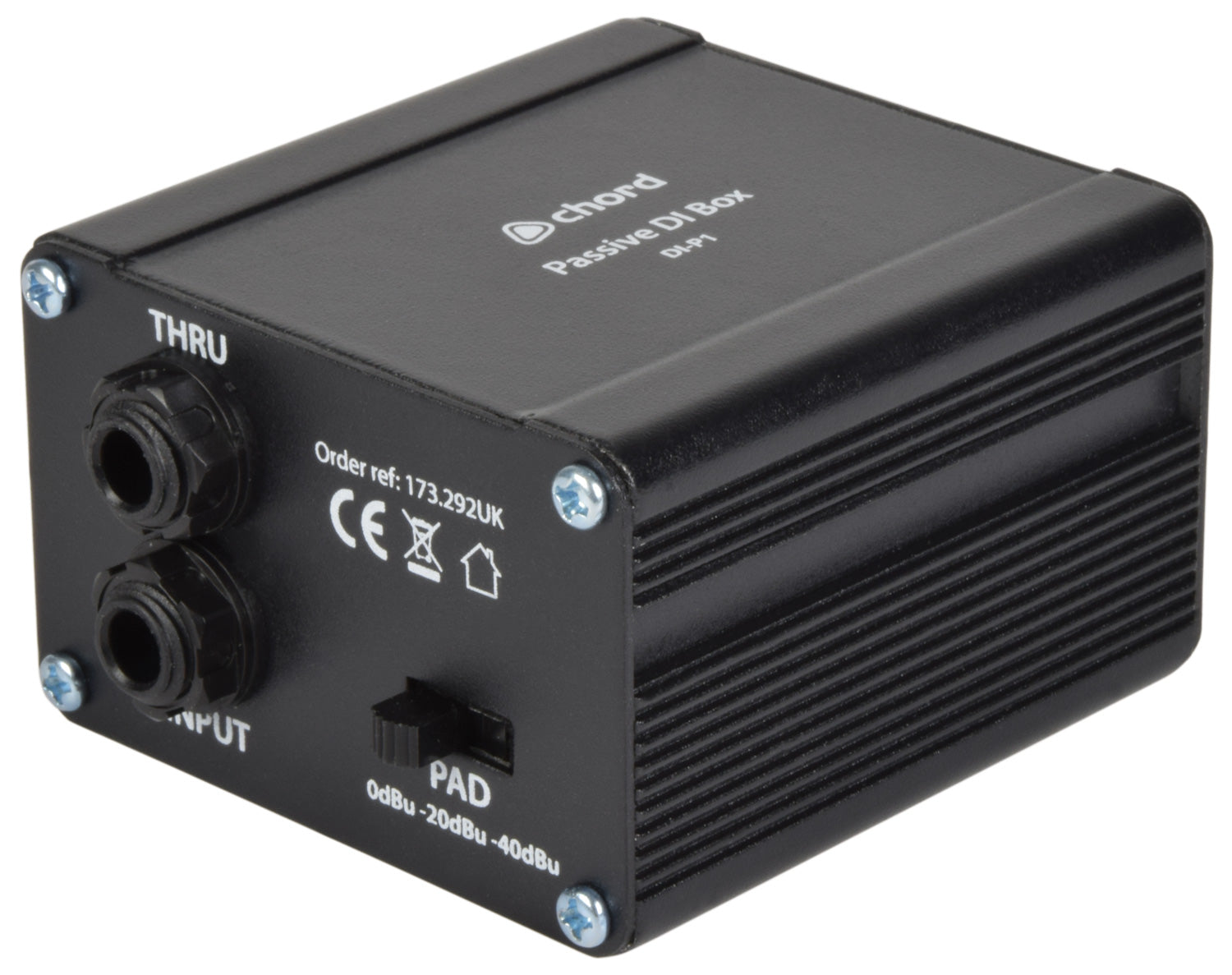

• Black metal rectangular box with one thru jack socket and one input jack socket. A plastic toggle-switch for 3 different decibel settings.

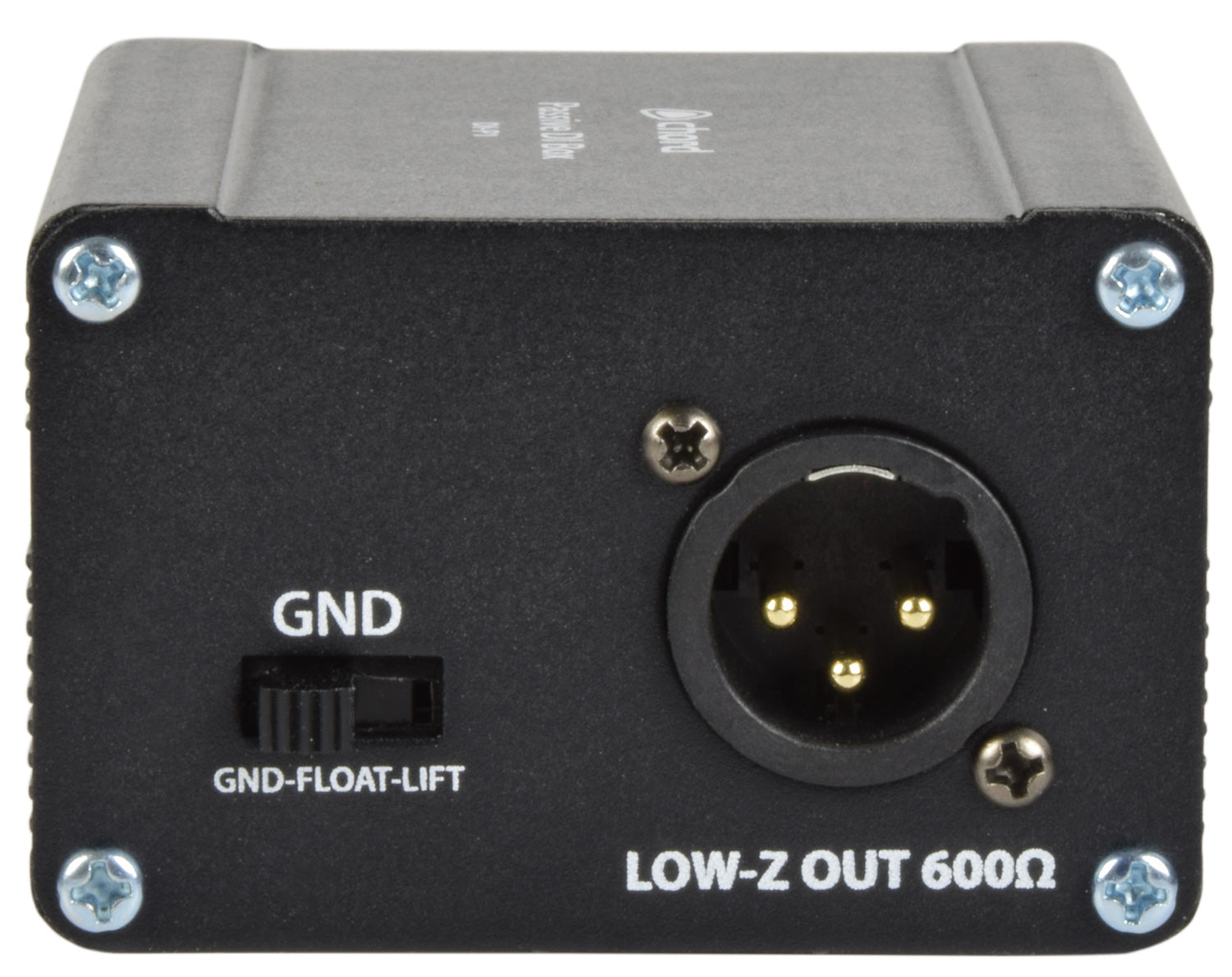

  • A black metallic box with a XLR output and a 3-way toggle switch (GRD - Float - Lift).

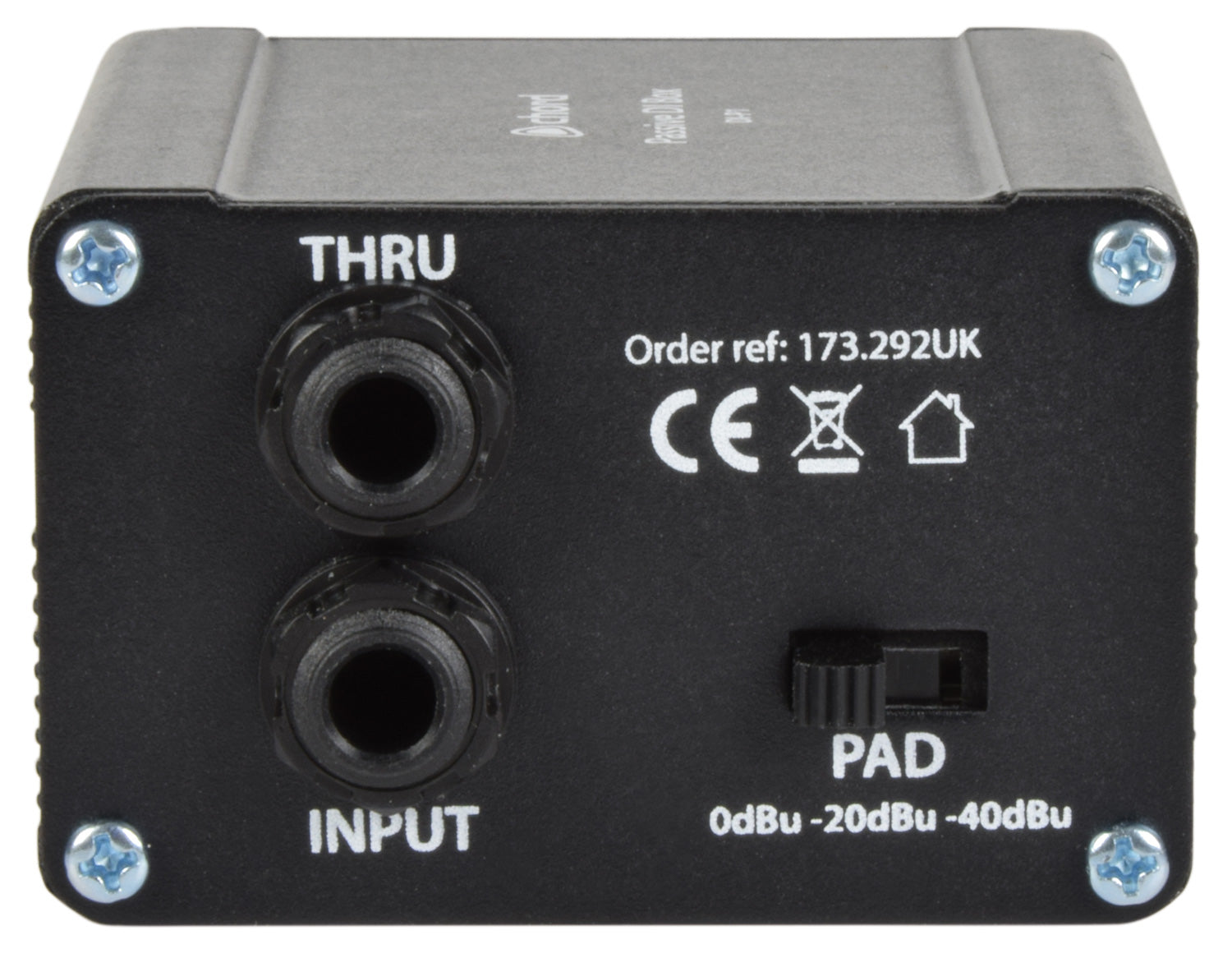

  • Black metal rectangular box with one thru jack socket and one input jack socket. A plastic toggle-switch for 3 different decibel settings.

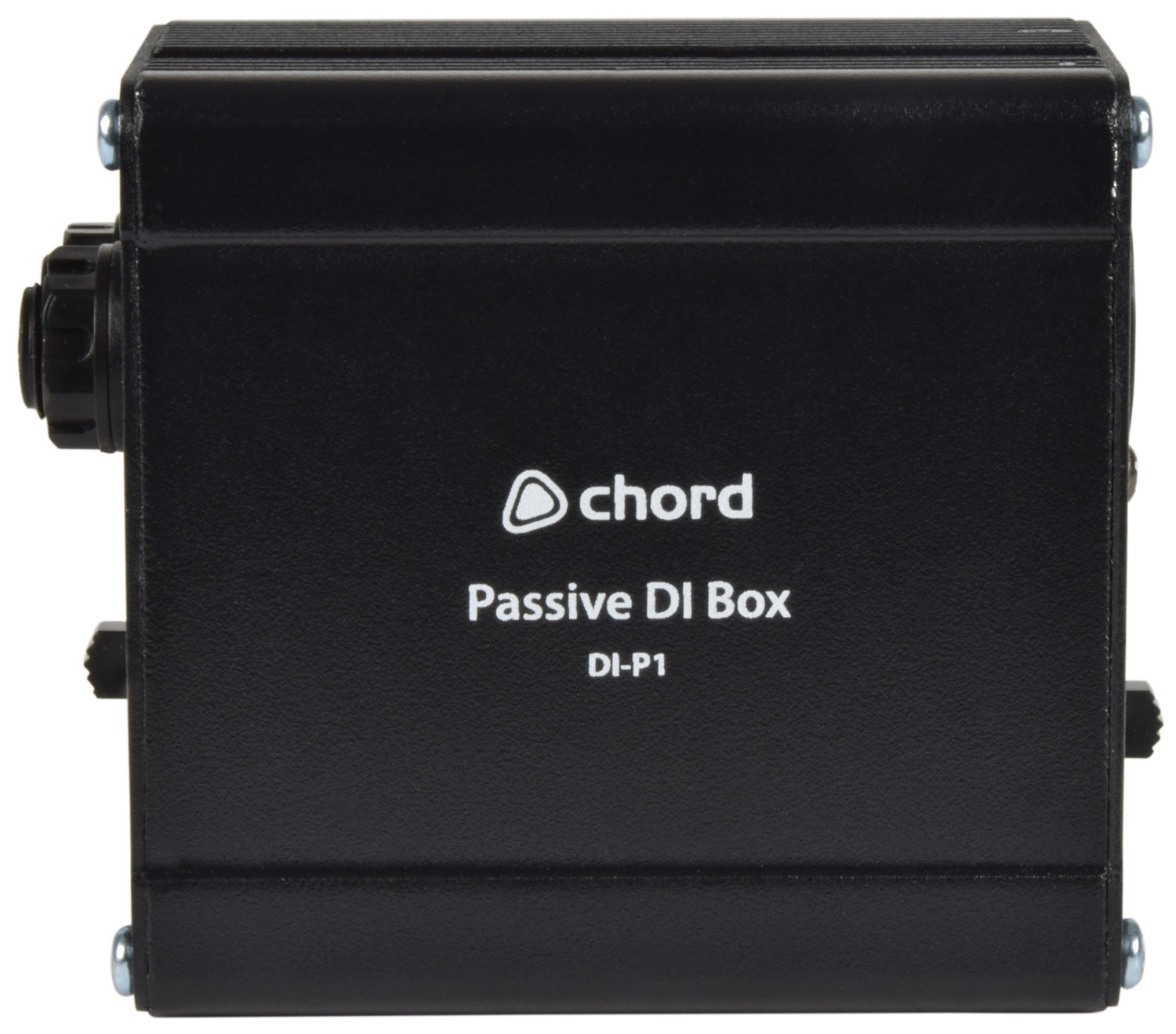

  • A to view, it looks like a box with with light protrusions where inputs, outputs and switches are. Brand, name and model are printed in white on the top of it.

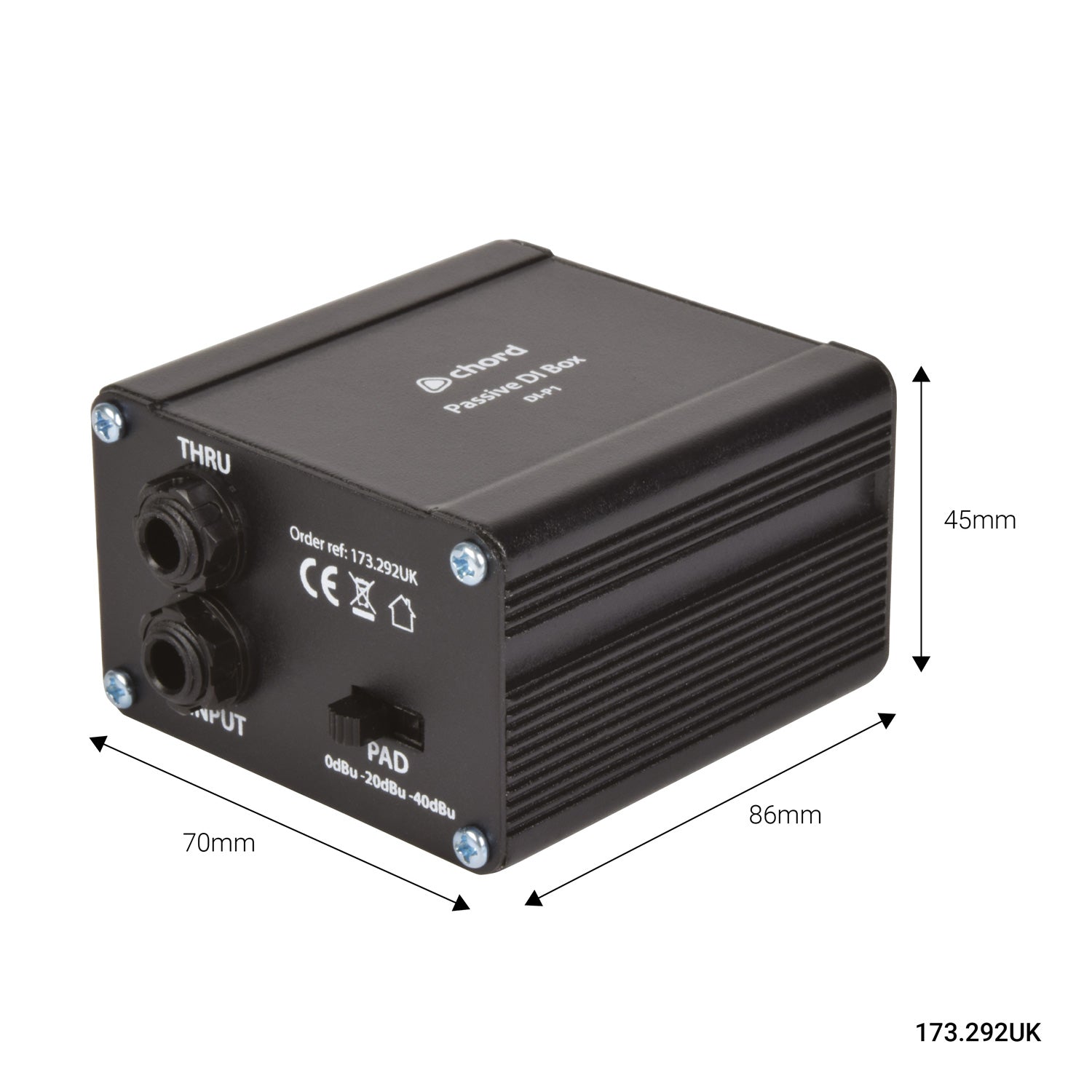

  • Sizes 70mm x 86mm x 45mm

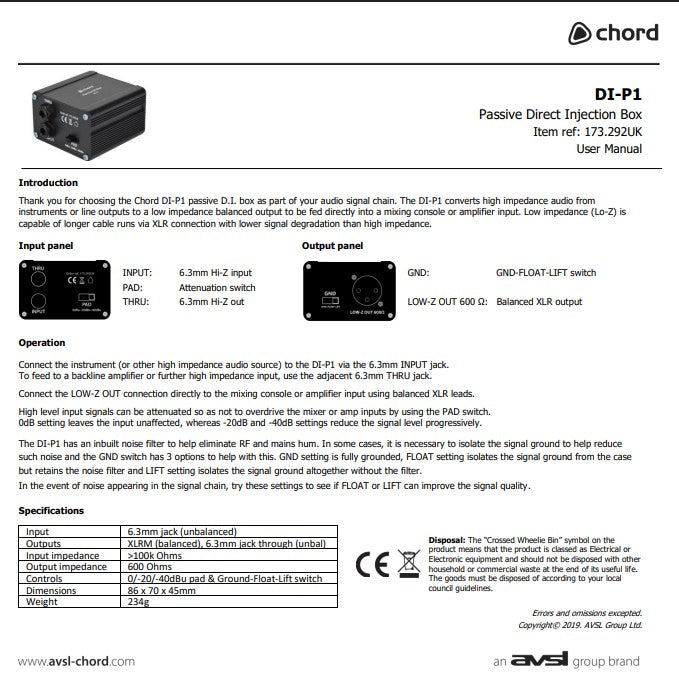

  • User manual for Chord DI-P1 passive direct injection box with technical specifications and branding.
1 6

173.292 | DA-P1 Passive Direct Injection Box

173.292 | DA-P1 Passive Direct Injection Box

173.292

Clean, professional signal every time — 3 pad settings, RF filtering, and ground lift eliminate hum and interference. Plug in, play, sound great.

Description

Passive DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Equipped with 3 pad settings, RF/mains filter and selector for ground lift with or without filter.

  • Ground float option for ground lift with RF/mains filter
  • Ground lift option isolates signal ground without filter
  • 3 pad settings for level matching

In the box

The box for this item contains :

  • Passive DI box





Features & Specs

Specification

  • Input6.3mm jack (unbalanced)
  • OutputsXLRM (balanced), 6.3mm jack through (unbalanced)
  • Input impedance>100k Ohms
  • Output impedance600 Ohms
